A Detailed Explanation of the Electroforming Process for Metal Ball-on-Wire Stamps in the Semiconductor Industry

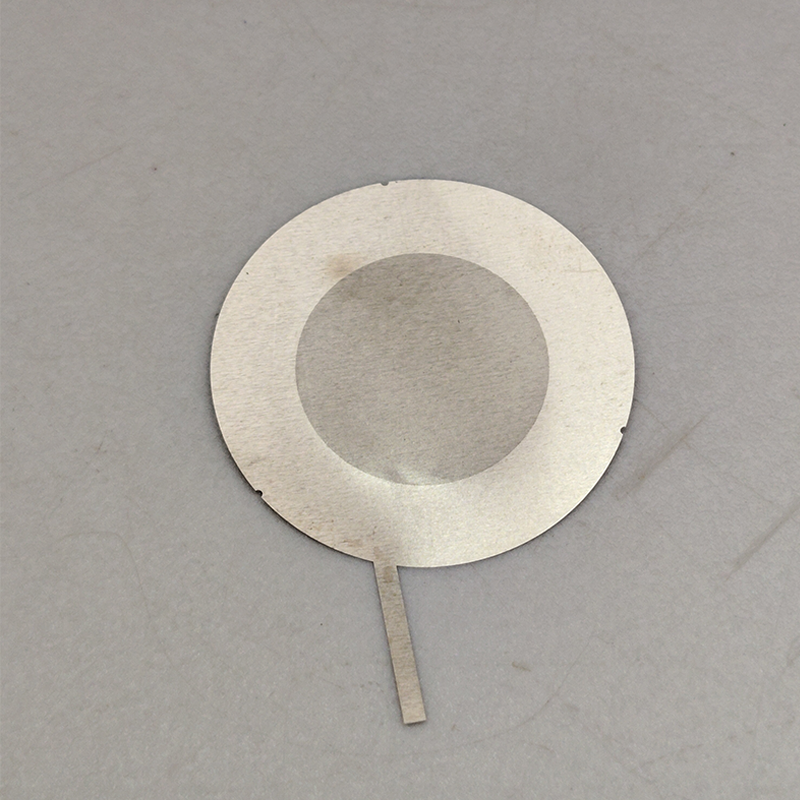

I. Pre-processing Preparation: Laying the Foundation for Quality in Semiconductor Ball-Placement Steel Mesh Manufacturing

Thorough pre-processing preparation is essential for the manufacturing of semiconductor ball-placement steel meshes. This step directly determines the precision and stability of the final product and serves as the primary means by which manufacturers of electroformed semiconductor ball-placement steel meshes ensure product quality. Preliminary preparation primarily consists of three core steps: core mold preparation, material selection, and environmental calibration. The core mold must undergo precision polishing to ensure a flat, smooth surface free of any impurities or scratches, providing a uniform substrate for metal ion deposition. Regarding materials, high-quality metals such as 304 stainless steel are prioritized, balancing hardness and corrosion resistance to meet the high-precision requirements of electroforming for semiconductor ball grid arrays. Simultaneously, manufacturers of semiconductor ball grid array (BGA) steel mesh electroforming strictly calibrate the production environment, maintaining workshop temperature and humidity at 23±3°C. This ensures cleanliness and prevents dust or impurities from affecting the manufacturing process, thereby creating optimal conditions for BGA steel mesh production.

II. Core Manufacturing Process: Key Stages of Semiconductor BGA Steel Mesh Electroforming

(1) Core Mold Treatment and Photoresist Coating

After core mold preparation is complete, the process proceeds to photoresist coating, which serves as the foundation for pattern transfer in semiconductor ball grid array (BGA) steel mesh electroforming. Manufacturers utilize specialized coating equipment to apply the photoresist uniformly across the core mold surface. By precisely controlling the coating speed and thickness, they ensure the photoresist layer is uniform, free of bubbles, and intact, meeting the ultra-fine pitch requirements of semiconductor BGA steel mesh processing. After coating, the master mold undergoes a pre-baking process to remove solvents from the photoresist and enhance adhesion between the photoresist layer and the master mold, preparing it for subsequent exposure and development. The precision of this step is critical to ensuring the pattern accuracy of the semiconductor metal ball grid array.

(2) Exposure and Development: The Core Step in Pattern Transfer

Exposure and development is the core process for transferring the designed ball-pitch pattern onto the surface of the master mold, and it directly affects the precision of the electroforming process for semiconductor ball-pitch stencils. Manufacturers of electroformed stencils for semiconductor ball placement place the master mold coated with photoresist into a lithography machine. By exposing it to ultraviolet light of a specific wavelength, a photochemical reaction occurs in the photoresist. The master mold is then immersed in a developer solution to remove the unexposed photoresist, forming a photoresist mask that matches the designed pattern. The entire process requires strict control of exposure time, development temperature, and development duration. The higher the precision requirements for semiconductor ball grid array (BGA) stencil processing, the more stringent the parameter control in this stage must be, ensuring that the edges of the ball holes are sharp, burr-free, and distortion-free to meet the demands of ultra-fine pitch ball placement.

(3) Electroforming: The Core of Semiconductor Ball-Mounting Steel Mesh Formation

Electroforming is the core step in the electroforming process for semiconductor ball-mounting steel meshes and is also critical to the formation of metal ball-mounting steel meshes. Manufacturers of semiconductor ball-mounting steel meshes place the developed master mold into an electroforming tank, using the master mold as the cathode and a corresponding metal material as the anode, then applying a stable direct current. Under the influence of the electric field, metal ions from the anode gradually dissolve and deposit in the photoresist openings of the core mold. By precisely controlling the current density, electroforming temperature, and electroforming time, the metal ions are deposited uniformly layer by layer, forming a metal structure that meets thickness and precision requirements. This ensures smooth balling hole walls and enhances solder paste release performance. During this process, manufacturers of electroformed stencils for semiconductor ball placement monitor electroforming parameters in real time and make timely adjustments to ensure uniform product thickness and a dense structure, thereby meeting the performance requirements for semiconductor ball placement stencil processing.

(4) Demolding Process: Separating the Formed Ball-Placement Steel Mesh

Once the electroformed layer reaches the predetermined thickness, the process proceeds to the demolding stage, where the formed semiconductor ball-placement steel mesh is separated from the core mold. Manufacturers of semiconductor ball-placement steel mesh employ gentle demolding methods to avoid damaging the pattern structure of the ball-placement holes. Common methods include mechanical demolding, chemical demolding, or thermal demolding, with the choice determined by the core mold material and the precision requirements of the steel mesh. After demolding, residual photoresist and impurities are removed to obtain the initial semiconductor metal ball grid array, preparing it for subsequent post-processing and ensuring a smooth conclusion to the manufacturing process.

III. Post-Processing and Quality Inspection: Ensuring Product Compliance

Post-processing is a critical step in enhancing the performance of semiconductor metal ball grid arrays and serves as the final quality control checkpoint for manufacturers of electroformed semiconductor ball grid arrays. First, the demolded stencil is cleaned to remove residual electrolytes, photoresist, and other impurities from the surface. It is then annealed to eliminate internal stresses generated during the electroforming process, preventing warping and cracking while enhancing mechanical stability. For products requiring high precision, surface polishing is also performed to further improve the smoothness of the aperture walls, optimize solder paste release, and meet the high-end requirements of semiconductor balling stencil processing.

During the quality inspection phase, manufacturers of electroformed semiconductor ball placement stencils utilize specialized testing equipment to comprehensively evaluate parameters such as stencil thickness, ball placement hole precision, and surface roughness, ensuring that every product meets industry standards and customer requirements. Electroforming of semiconductor ball placement stencils demands extremely high precision, requiring a meticulous and rigorous inspection process to eliminate non-conforming products and ensure the consistent quality of the finished stencils. Additionally, special attention is given to inspecting the aspect ratio and area ratio of the ball placement holes to ensure they meet solder paste release requirements, thereby supporting subsequent semiconductor ball placement processes.

In summary, the electroforming of semiconductor metal ball grid arrays is a technology-intensive process. From preliminary preparation to core processing, and on to post-processing and quality inspection, every step must be strictly controlled. Leveraging mature technologies and precise parameter control, manufacturers of electroformed semiconductor balling stencils complete the entire production process, producing high-precision, highly stable stencils that are widely used in high-end manufacturing sectors such as semiconductor packaging, thereby providing core support for the development of related industries.
