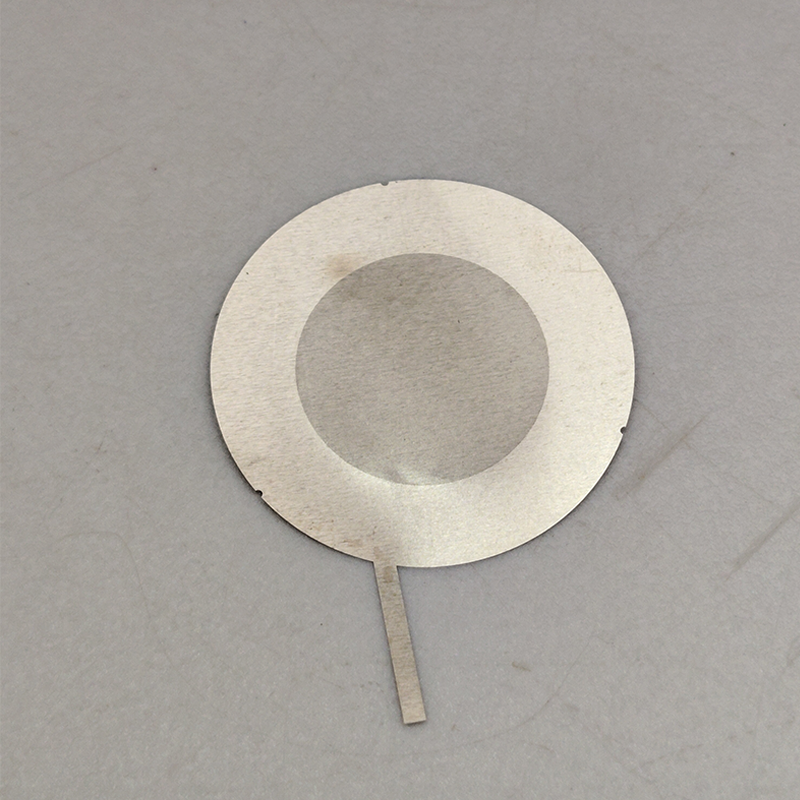

A Detailed Explanation of the Electroforming Process for Precision Metal Masks

I. Pre-processing Preparation: Laying the Foundation for the Quality of Electroformed Metal Masks

Thorough pre-processing preparation is a prerequisite for the electroforming of metal masks. This step directly determines the precision and stability of the resulting metal masks and serves as the primary means by which manufacturers ensure product quality. Preliminary preparation primarily consists of three core steps: core mold preparation, material selection, and environmental calibration. The core mold must undergo precision polishing to ensure a flat, smooth surface free of any impurities or scratches, providing a uniform substrate for metal ion deposition. Regarding materials, high-quality metals such as nickel-cobalt alloys are prioritized, balancing hardness and corrosion resistance to meet the high-precision requirements of electroformed metal masks. Simultaneously, manufacturers of electroformed metal masks rigorously calibrate the production environment, controlling workshop temperature, humidity, and cleanliness to prevent dust and impurities from affecting the manufacturing process, thereby creating optimal conditions for electroforming.

II. Core Manufacturing Process: Key Stages of Electroforming Metal Masks

(1) Core Mold Preparation and Photoresist Coating

After core mold preparation is complete, the process proceeds to the photoresist coating stage, which serves as the foundation for pattern transfer in metal photomask electroforming. Manufacturers use specialized coating equipment to apply the photoresist uniformly across the core mold surface. By precisely controlling the coating speed and thickness, they ensure the photoresist layer is even, free of bubbles, and without defects. After coating, the master mold undergoes a pre-baking process to remove solvents from the photoresist and enhance adhesion between the photoresist layer and the master mold, preparing it for subsequent exposure and development. The precision of this step is crucial for ensuring the pattern accuracy of the electroformed metal mask.

(2) Exposure and Development: The Core Step in Pattern Transfer

Exposure and development is the core process for transferring the designed mask pattern onto the surface of the master mold, and it directly affects the pattern accuracy of the electroformed metal mask. Electroforming manufacturers of metal masks place the master mold coated with photoresist into a lithography machine. By exposing it to ultraviolet light of a specific wavelength, a photochemical reaction occurs in the photoresist. The master mold is then immersed in a developer solution to remove the unexposed photoresist, forming a photoresist mask that matches the designed pattern. The entire process requires strict control of exposure time, development temperature, and development duration. The higher the precision requirements for the electroformed metal mask, the more stringent the parameter control in this stage must be to ensure that the pattern edges are sharp, free of burrs, and undistorted.

(3) Electrodeposition: The Core of Metal Mask Formation

Electrodeposition is the core step in the electroforming process of metal masks and is also the key to the formation of the metal mask. The metal photomask electroforming manufacturer places the developed core mold into the electroforming tank, using the core mold as the cathode and a corresponding metal material as the anode, then applies a stable direct current. Under the influence of the electric field, metal ions from the anode gradually dissolve and deposit in the photoresist openings of the core mold. By precisely controlling the current density, electroforming temperature, and electroforming time, the metal ions are deposited uniformly layer by layer, forming a metal structure that meets the required thickness and precision specifications. During this stage, the manufacturer continuously monitors electroforming parameters and makes timely adjustments to ensure the metal mask has uniform thickness and a dense structure, meeting the requirements for subsequent use.

(4) Demolding: Separating the Formed Mask

Once the electroformed layer reaches the predetermined thickness, the process proceeds to demolding, where the formed metal mask is separated from the core mold. Electroforming manufacturers employ gentle demolding methods to avoid damaging the mask’s pattern structure. Common methods include mechanical, chemical, or thermal demolding, selected flexibly based on the core mold material and mask precision. After demolding, residual photoresist and impurities are removed to obtain the initial electroformed metal mask, preparing it for subsequent post-processing.

III. Post-Processing and Quality Inspection: Ensuring Product Conformity

Post-processing is a critical step in enhancing the performance of electroformed metal masks, and it serves as the final quality control checkpoint for manufacturers of electroformed metal masks. First, the masks are cleaned after demolding to remove residual electrolytes, photoresist, and other impurities from the surface. They are then annealed to eliminate internal stresses generated during the electroforming process, preventing warping and cracking while enhancing mechanical stability. For certain electroformed metal masks requiring high precision, surface polishing is also performed to improve surface finish.

During the quality inspection phase, manufacturers utilize specialized testing equipment to comprehensively evaluate the electroformed metal masks for parameters such as thickness, pattern accuracy, and surface roughness, ensuring that every product meets industry standards and customer requirements. Given the extremely high precision demands of electroformed metal mask processing, the inspection process must be meticulous and rigorous to eliminate non-conforming products and guarantee the consistent quality of the finished electroformed metal masks.

In summary, the electroforming of precision metal masks is a technology-intensive process. From preliminary preparation to core processing, and on to post-processing and quality inspection, every step must be strictly controlled. Leveraging mature technologies and precise parameter control, metal photomask electroforming manufacturers complete the entire electroforming process, producing high-precision, highly stable electroformed metal photomasks. These are widely used in high-end manufacturing sectors such as semiconductors and display panels, providing core support for the development of related industries.
