Manufacturing Process and Application Examples of High-Mesh Nickel Screening Mesh

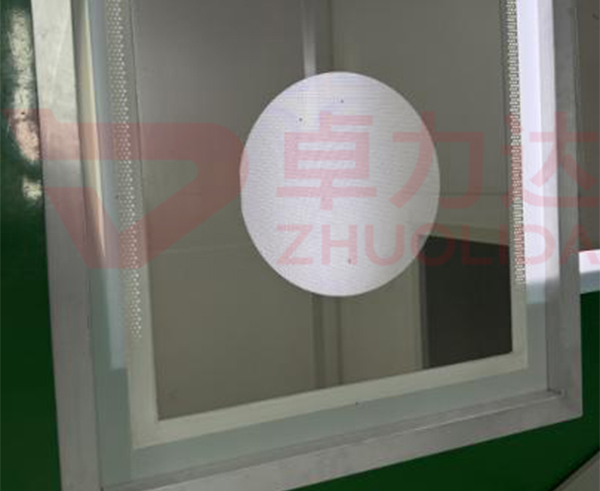

High-mesh nickel mesh

As the industries of high-end precision screening, ultra-clean fluid filtration, and micro-powder classification continue to advance, market demands for mesh precision, pore size uniformity, and surface flatness are constantly rising. Traditional standard screens, with their low mesh counts, significant deviations in pore shape, and rough surfaces, are unable to meet the requirements for micro- and nano-scale material separation. High-mesh nickel screens are precision electroformed from high-purity nickel, offering advantages such as high mesh density, uniform pore size, vertical and smooth pore walls, resistance to acid and alkali corrosion, and stable electrical conductivity. They serve as core functional components for the precision classification of ultrafine powders, the purification of high-purity fluids, and the protection of precision equipment. The manufacturing process for high-mesh nickel screens differs from conventional screen processing. To address the challenges of forming high-density micro-pore arrays, we employ low-stress electroforming and precision alignment technologies, effectively resolving common defects such as deformation, pore misalignment, and localized pore defects. Manufacturers specializing in the electroforming of high-mesh nickel screens focus on the field of high-precision nickel screen forming. They continuously optimize high-density micro-pore forming processes and overcome technical bottlenecks in high-mesh processing, providing reliable process support for high-precision screening and filtration production across various industries.

High-mesh nickel mesh processing operates under a standardized, cleanroom-grade, high-precision closed-loop production system. This system encompasses eight core processes: precision master mold design and fabrication, substrate conductive activation, high-density micro-pore electroforming, non-destructive demolding and trimming, surface leveling and strengthening, clean passivation treatment, comprehensive mesh count accuracy testing, and anti-static sealing and packaging. The entire process is conducted in a Class 100 cleanroom with constant temperature control, effectively preventing issues common in high-mesh-count structures such as misaligned pores, warped surfaces, micro-pore blockage, and uneven mesh counts. Throughout the processing of high-mesh nickel screens, we strictly control the density of the micro-pore array and pore diameter tolerances to ensure consistent mesh count and uniform permeability across the entire screen, making it suitable for high-precision, high-throughput screening of ultra-fine particles. Electroforming manufacturers of high-mesh nickel screens dynamically adjust electroforming current, chemical solution ratios, and forming duration based on different mesh specifications and application scenarios, ensuring consistency and stability in the mass production of high-mesh nickel screens.

The preparation of high-precision master molds is a foundational preliminary process in high-mesh-count nickel screen manufacturing, directly determining the accuracy of the mesh count and the uniformity of the micro-pores. Due to the dense micro-pores and extremely small pore spacing in high-mesh-count nickel screens, the graphic precision of the master mold is critically important. Specialized molding master molds must be fabricated using low-deformation, high-transparency quartz substrates. Through high-precision laser direct writing, uniform UV exposure, and precise constant-temperature development processes, we replicate high-density, regular micro-pore array structures. We strictly control individual pore dimensions, inter-pore spacing, and overall layout accuracy to eliminate defects such as pattern distortion, local density irregularities, and residual adhesive along edges. After master mold fabrication, comprehensive inspection is conducted using high-magnification microscopy to individually verify micro-hole integrity and array uniformity, eliminating defective master molds that fail to meet precision standards. Manufacturers of high-mesh nickel-plated screens have refined production standards for high-density master molds and optimized zone-specific exposure processes to ensure the forming precision and mesh uniformity of high-mesh nickel-plated screens from the source.

Conductive activation and high-density electroforming are the core processes in the manufacturing of high-mesh-count nickel screens, directly determining the screen’s core performance. The surface of qualified master molds undergoes vacuum sputtering to form a uniform, dense, ultra-thin conductive layer, ensuring balanced current distribution across the entire surface during high-density electroforming and preventing issues such as uneven nickel deposition and thickness variations in high-density microporous areas. The activated master mold is placed into a temperature-controlled, sealed electroforming chamber. Using a low-stress pulsed electroforming process, the temperature, concentration, pH, and pulse parameters of the high-purity nickel electrolyte are precisely controlled to ensure that nickel ions deposit at a constant rate, uniformly and densely, forming a high-mesh nickel screen with a structurally complete, monolithic design and a regular array of pores. This process involves no mechanical compression or tensile stress, resulting in a flat surface and micro-pores that are vertically aligned and fully permeable. It completely resolves issues commonly encountered in traditional high-mesh processing, such as pore blockage, slanted pore walls, and localized mesh breaks. Manufacturers of high-mesh nickel screens continuously refine pulse electroforming parameters to reduce micro-pore side etching rates, significantly improving the vertical alignment and permeability of the micro-pores.

Non-destructive demolding and surface leveling/clearing are critical processes for optimizing the quality of high-mesh-count nickel mesh. Due to their dense micro-pores and delicate structure, these meshes are highly susceptible to deformation, pore breakage, and surface wrinkling when subjected to external forces. After electroforming, a gentle, non-destructive peeling process is employed to ensure smooth separation of the mesh from the master mold, thereby maximizing the structural integrity of the high-density micro-pore array. After demolding, low-temperature stress aging and micro-leveling processes are employed to gradually release residual molding stresses, correcting minor warping and localized deformations on the mesh surface. Simultaneously, ultrasonic micro-pore cleaning technology is used to thoroughly remove residual nickel particles and impurities from within the micro-pores, ensuring that every pore is unobstructed and fully permeable, thereby comprehensively enhancing screening flow and precision. Manufacturers of high-mesh nickel mesh screens strictly adhere to leveling and cleaning process standards, precisely controlling the flatness of the mesh surface to effectively enhance the structural stability and operational reliability of the screens.

Clean passivation and corrosion resistance reinforcement are core processes for extending the service life of high-mesh nickel mesh screens. High-mesh nickel screens are commonly used in demanding applications such as the screening of high-purity materials and the filtration of acidic and alkaline fluids. Their high-density microporous structure is highly susceptible to impurity adsorption and oxidation corrosion, leading to issues such as pore blockage and performance degradation over time. After forming, the screens undergo multi-stage purified water rinsing, ultrasonic deep cleaning, and vacuum drying to thoroughly remove residual impurities from both the mesh surface and the interior of the microporous structure, meeting high-purity production standards. Subsequently, through passivation and anti-corrosion treatment, as well as surface hardening, a uniform and dense protective layer is formed on the screen surface. This effectively enhances the nickel mesh’s resistance to acids and alkalis, oxidation, and adhesion, reduces the likelihood of ultra-fine powder adsorption and accumulation, minimizes frequent pore blockages, and significantly extends the screen’s service life. Manufacturers of high-mesh nickel screens utilize electroforming processes and tailor specialized strengthening techniques to specific operating conditions, comprehensively enhancing the environmental adaptability and durability of high-mesh nickel screens.

Comprehensive precision inspection and clean packaging are the final steps in ensuring the quality of high-mesh nickel-plated wire mesh processing. Utilizing precision equipment such as laser aperture analyzers, high-magnification microscopes, mesh density testers, and flatness testers, we conduct comprehensive inspections of mesh density, individual aperture accuracy, aperture spacing uniformity, surface flatness, and micro-aperture permeability. We strictly control micron-level tolerances and precisely screen for defects such as missing apertures, blocked apertures, aperture size deviations, and uneven arrays. Simultaneously, simulated screening tests are conducted to verify the grading accuracy, filtration efficiency, and anti-clogging performance of high-mesh-count screens, ensuring the finished products meet high-precision production requirements. Products that pass inspection are vacuum-sealed in an anti-static, clean environment to isolate them from dust, moisture, and oxidative corrosion, thereby ensuring structural and dimensional stability during storage and transportation. Manufacturers of high-mesh nickel screens utilize electroforming processes and have established a comprehensive quality control system, ensuring that every batch meets quality standards through rigorous testing protocols.

With their unique advantages of high density, high precision, high cleanliness, and corrosion resistance, high-mesh nickel screens are widely used in high-end fields such as the classification of ultrafine powders for new energy applications, the screening of biopharmaceutical microspheres, ultra-clean fluid filtration in semiconductors, and the purification of precision chemical raw materials. They serve as core supporting components for the precision processing of fine materials. The processing of high-mesh nickel screens involves the continuous optimization of high-density micro-pore forming technology, constantly overcoming the forming bottlenecks associated with ultra-high mesh counts and ultra-fine pore sizes to meet the iterative demands of refined production in high-end industries. Manufacturers of electroformed high-mesh nickel screens closely follow the development trends of the precision manufacturing industry, continuously improving their process systems to support the quality enhancement and upgrading of the high-precision screening and filtration industry.

In applications involving the classification of ultrafine powders for new energy, materials such as battery powders and energy storage microspheres demand extremely high particle size uniformity, which directly impacts battery energy density and cycle life. High-mesh nickel mesh processing enables precise classification of ultrafine powders, effectively removing irregular particles and powders of inconsistent fineness, thereby enhancing overall powder consistency. High-mesh nickel screens feature uniformly permeable micro-pores that are resistant to clogging, making them suitable for continuous mass production screening operations. Manufacturers of electroformed high-mesh nickel screens have optimized the anti-clogging structure of high-density micro-pores to ensure stable powder screening efficiency and consistent product quality.

In biopharmaceutical microsphere screening applications, medical microspheres and reagent powders are subject to stringent purity requirements; impurity shedding from the screen or uneven screening can compromise product safety. High-mesh nickel mesh screens feature high cleanliness, no impurity leaching, and a regular micro-pore arrangement, enabling precise microsphere classification and screening without damaging the powder structure. High-mesh nickel screens are resistant to acids and alkalis and can be repeatedly sterilized and cleaned, meeting biopharmaceutical aseptic production standards. Manufacturers of electroformed high-mesh nickel screens strictly control the entire clean process to eliminate secondary contamination and ensure biopharmaceutical production safety.

In semiconductor ultra-clean fluid filtration applications, ultra-pure water and cleaning solutions used in semiconductor production require high-precision purification and filtration, as even minute impurities can cause defects in the chip manufacturing process. Thanks to their ultra-high mesh precision, high-mesh nickel screens can accurately intercept trace amounts of fine impurities, ensuring ultra-high fluid purity. These screens feature excellent anti-static and corrosion-resistant properties, making them suitable for the demanding conditions of precision semiconductor manufacturing. Manufacturers of electroformed high-mesh nickel screens strictly control forming precision to meet the high-precision filtration requirements of advanced semiconductor manufacturing.

Overall, high-mesh nickel screens address the industry’s shortcomings in traditional screens—namely, insufficient forming precision and poor stability at high mesh counts—making them a core component for the screening and filtration of high-end, fine materials. Relying on mature Precision Electroforming processes, the manufacturing of high-mesh nickel screens effectively overcomes the challenges of forming high-density micro-pores, ensuring both screen precision and operational stability. Manufacturers of high-mesh nickel mesh via electroforming continue to deepen their expertise in the field of high-precision nickel mesh manufacturing, constantly refining process details to provide a solid foundation for the high-quality development of high-end precision industries such as new energy, biopharmaceuticals, and semiconductors.
