Core Factors Affecting ElectroformingProcessing Prices: CostComposition Analysis for Precision Electroforming

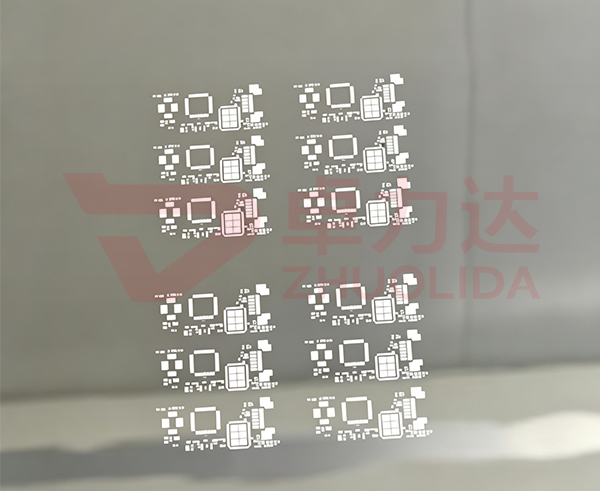

In the precision metalmanufacturing industry, Electroforming processing features highfidelity replication and stressfree forming. It is widely used for manufacturing semiconductor electroformed templates, precision filter screens, microstructural spring probes and other components. In earlystage projects, many purchasers and R&D personnel pay primary attention to electroformingprocessing prices. Electroforming processing has no fixed unit price. Its price range varies drastically subject to product structures, precision specifications, material selection and order volume. Electroformingprocessing quotations shall be comprehensively calculated based on drawing parameters, process difficulty and inspection criteria, instead of simple pricing by material area. When calculating costs, electroformingprocessing manufacturers break down inputs of mastermask fabrication, electrodeposition, posttreatment and inspection. This explains why electroformingprocessing quotations are higher than those of ordinary etching and stamping. When evaluating electroforming processing, we shall not only focus on unitprocessing fees, but also comprehensively consider finishedproduct yield, secondaryprocessing costs and service life, and assess overall costs from a fulllifecycle perspective.

The primary factor affecting electroformingprocessing quotations is graphic complexity and precision requirements, which constitutes the most critical contributor to price gaps. Parts with simple patterns, large apertures and loose tolerance requirements feature low manufacturing difficulty and short processing manhours, leading to relatively affordable electroformingprocessing quotations. Once products enter the field of micronscale precision manufacturing, especially highdensity microholearray templates for semiconductor packaging, strict constraints are imposed on aperture, hole position, flatness and holewall roughness, which greatly increase manufacturing difficulty. Such products require photolithographic mastermask fabrication in cleanroom environments, slow metal deposition via pulse current in the electrodeposition phase, and fullpanel holebyhole scanning inspection after forming. Significant increases in labor and equipment inputs directly push up electroformingprocessing prices. Deeper microholes, smaller line widths and largerscale arrays raise scrap risks, and yieldloss costs will be included in quotations. Products requiring highaspectratio microholes, specialshaped microstructures or ultrathin panels entail longer processdebugging cycles and further increase overall costs.

Material selection also directly determines electroformingprocessing prices. Common materials for electroforming processing include pure nickel, nickelcobalt alloy and copper with obvious rawmaterialcost differences. Nickelcobalt alloy delivers lower internal stress, higher hardness and better wear resistance. It is widely used for highend semiconductor templates, yet highpurity nickelsalt raw materials come at higher procurement costs. Ordinary pure nickel applies to generalpurpose precision parts with relatively lower rawmaterial costs. Material thickness is another key variable. Greater thickness requires longer electrodeposition duration, accompanied by rising electrolyte consumption and energy costs. Some products need additional posttreatment procedures such as passivation, polishing and special cleaning. Extra posttreatment procedures are calculated separately and reflected in electroformingprocessing quotations.

Order quantity and production modes serve as important variables for electroformingprocessing quotations. Electroforming processing includes prototype sampling and massvolume production. Prototype sampling requires separate photolithographic mastermask fabrication as a onetime investment. Unititem amortized costs remain high for smallbatch sampling, so sampling unit prices are obviously higher than massproduction unit prices. As order quantity rises, mastermask costs are amortized by large quantities of products, unitprocessing costs decrease, and electroformingprocessing manufacturers can offer more favorable quotations. If original master masks can be reused for repeated followup orders, no extra mastermask fees will be charged, effectively lowering procurement costs of subsequent orders. On the contrary, smallbatch, multispecification orders with frequent drawing revisions demand repeated readjustment of master masks and process parameters, resulting in heavy debugging manhours and hardlyreduced unit prices.

Productionenvironment and inspection standards represent hidden costs easily overlooked yet influential to electroformingprocessing prices. Ordinary civil precision parts can be manufactured in conventional workshops with basic dimensional sampling inspection. By contrast, semiconductorgrade electroforming processing must be performed in highgrade cleanrooms to control dust particles and prevent scrap caused by particle attachment inside microholes. Cleanroom operationandmaintenance costs, depreciation of highprecision opticalmeasurement equipment and consumption of cleanroom consumables are all counted into costs. Highend products require fullpanel 100 % inspection to verify every microhole and contour feature holebyhole. Inspection consumes far more time than sampling inspection. Labor and equipment costs in inspection procedures are ultimately reflected in electroformingprocessing quotations. Quality standards vary greatly across industries. Automotivegrade and semiconductorgrade products involve more inspection items and stricter yieldcontrol standards, leading to higher quotations than ordinary industrial components.

Processcontrol capabilities of electroformingprocessing manufacturers also affect final quotation ranges. Electroformingprocessing manufacturers with mature and stable process systems achieve higher production yields and lower reject losses, delivering quotations with reasonable cost margins. Processimmature vendors may provide seemingly low quotations but suffer poor yields in massvolume production, bringing hidden costs such as rework, delivery delays and product failures and increasing overall project expenditures. Core competitiveness of electroformingprocessing manufacturers lies in electrolyte formulations, currentparameter control and stressreliefannealing processes. Mature processes mitigate risks of part warpage, cracking and microhole defects and guarantee delivery quality. Electroformingprocessing manufacturers also provide technical support including manufacturability assessment and pattern compensation design in the drawing phase to assist customers in optimizing structures and reduce repeated revisions during trial production. Such technicalservice costs are incorporated into overall electroformingprocessingquotation systems. Deliverytime requirements also exert impacts on prices. Rush orders demand productionline rescheduling and priority allocation of manpower and equipment, generating premiums for expedited services.

Many customers tend to compare electroforming processing with etching and stamping merely by unitprocessing fees and regard electroformingprocessing prices as excessively high. Nevertheless, stamping requires expensive molds with high revision costs and easily induces stress deformation for ultrathin parts. Etching suffers from undercut effects and struggles with highaspectratio microhole forming. Some parts need extra deburring and flattening after processing, adding secondaryprocessing expenses. Although electroforming processing has higher unitprocessing fees, it delivers stressfree formed parts with smooth vertical hole walls and stable yields, eliminating massive followuptreatment procedures. It offers advantages in overall costs for highend precisioncomponent scenarios.

Driven by the development of domestic advancedpackaging and precisioninstrument industries, market demands for electroforming processing keep growing. Domestic supporting production capacity expands with continuous process maturation. Electroformingprocessing prices for standardized products gradually stabilize. However, highend customized products for semiconductor packaging and highdensity microstructures still maintain relatively high prices due to high technical barriers and heavy equipment investments. When requesting electroformingprocessing quotations, customers shall prepare complete drawings, precision specifications, order quantities, delivery schedules and application scenarios in advance for accurate quotations. Costs and performance shall be balanced according to practical product requirements to select appropriate process solutions.
