Processing Workflow and Application Examples for Printing Stencils in Semiconductor Packaging Wafers

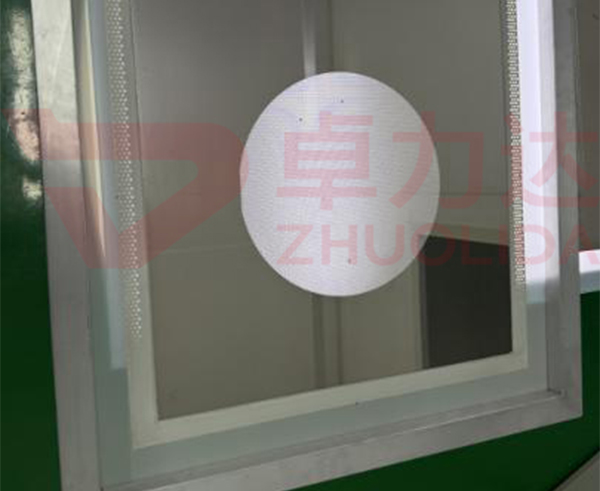

Against the backdrop of rapid development in the advanced semiconductor packaging industry, wafer-level packaging, chip miniaturization, and high-density pin layouts have become mainstream trends. Since the precision of solder paste printing directly determines chip packaging yield and long-term reliability, high-precision printing stencils have become a critical component in packaging and testing production. Semiconductor wafer printing stencils are precision metal components specifically designed for solder paste printing, flux application, and precise alignment and forming in wafer packaging. They offer advantages such as smooth aperture walls, high dimensional accuracy, uniform thickness, and strong repeatability in printing. These stencils meet the production requirements of advanced packaging processes such as BGA, CSP, WLP, and Chiplet, serving as a vital foundation for ensuring uniformity and consistency in wafer packaging. Custom semiconductor packaging wafer printing stencils can be designed with personalized structures based on different wafer sizes, chip pin pitches, printing thicknesses, and packaging equipment parameters. This addresses industry challenges such as the limited adaptability of standardized stencils, insufficient micro-hole precision, and solder overflow during printing, thereby meeting the mass production demands of various high-end chips. Electroforming for semiconductor packaging wafer printing stencils relies on low-stress pulse electroforming technology. Unlike traditional etching and laser cutting processes, this method ensures stress-free forming, high microvia perpendicularity, and excellent aperture consistency, making it the mainstream precision process for manufacturing high-end wafer printing stencils today.

Electroforming for semiconductor packaging wafer printing stencils employs a standardized, high-precision, and fully clean production system throughout the entire process. The entire process encompasses custom solution coordination, precision master mold fabrication, conductive layer deposition, pulse electroforming, non-destructive demolding, clean post-processing, precision dimensional verification, and vacuum packaging for shipment. All steps are completed in a Class 100 cleanroom environment, effectively preventing common defects such as stencil deformation, micro-hole burrs, rough hole walls, and uneven printing. Custom semiconductor packaging wafer printing stencils are designed to meet specific process requirements such as high-density arrays, ultra-fine pitch, ultra-thin printing, and localized reinforcement through structural optimization and parameter adaptation, enabling refined, customized production. With their excellent forming performance, these stencils are capable of supporting high-frequency continuous printing production, significantly improving production efficiency and product yield in semiconductor wafer packaging. They are widely used in various high-end chip packaging applications.

Confirming custom solutions and optimizing drawings are the first steps in customizing printing stencils for semiconductor packaging wafers. Based on key parameters such as wafer specifications, packaging process types, solder paste viscosity, printing pressure, and equipment stroke, we conduct specialized designs for stencil thickness, microvia aperture size, hole geometry, array layout, positioning references, and reinforcement areas. For special conditions such as ultra-fine pitch pins, high-density micro-hole arrays, and wafers with irregular layouts, we optimize the micro-hole opening ratio and wall taper to effectively improve solder flow, thereby preventing packaging defects such as clogged holes, cold solder joints, and solder bridging. Through process simulation and parameter verification, we confirm the rationality and stability of the customized solution, providing precise design criteria for the electroforming of semiconductor packaging wafer printing stencils, thereby ensuring product compatibility and printing accuracy from the source.

The preparation of high-precision master stencils is the core foundation for ensuring the precision of electroforming in semiconductor packaging wafer printing stencils. High-flatness, high-transparency quartz substrates are selected as the master mold substrate. Using laser direct writing and UV lithography processes, the micro-hole arrays, alignment references, positioning marks, and functional area patterns required for wafer printing are precisely replicated. Exposure accuracy, development rates, and curing temperatures are strictly controlled to ensure sharp pattern edges, regular contours, and the absence of distortion or residual photoresist. After master mold fabrication, high-magnification microscopic inspection and dimensional verification are conducted to eliminate defective master molds with misaligned points, incomplete patterns, or surface scratches, ensuring the master mold patterns fully comply with custom design standards. This sophisticated master mold preparation process maximizes the structural advantages of custom semiconductor packaging wafer printing stencils, laying the foundation for precision in subsequent electroforming.

Conductive layer treatment and pulse electroforming are the core processes in the electroforming of semiconductor packaging wafer printing stencils. The surface of the insulating quartz master mold undergoes vacuum sputtering to form a uniform, dense, ultra-thin conductive metal layer, ensuring balanced current distribution across the entire surface and preventing issues such as localized deposition irregularities or variations in structural thickness. After completing conductive activation and cleaning, the master mold is placed in a temperature-controlled closed-loop electroforming system. Using a low-stress pulse electroforming process, the electrolyte composition, temperature, pH, and pulse current density are precisely controlled to ensure that metal ions deposit slowly, uniformly, and densely onto the patterned areas of the master mold. This process effectively relieves internal metal stresses, resulting in a template that is uniformly flat, free of warping, and features vertical, smooth micropores. It eliminates the need for secondary mechanical polishing, maximizes the retention of structural precision, and fully demonstrates the precision forming advantages of electroforming for semiconductor packaging wafer printing templates.

Non-destructive demolding and ultra-clean post-processing are critical steps in optimizing the performance of printing stencils for semiconductor packaging wafers. After electroforming is complete, a gentle, non-destructive demolding process is used to completely separate the stencil from the master mold, thereby preventing micro-hole deformation, panel warping, and structural damage caused by external pulling forces. Following demolding, the stencils undergo multi-stage ultrasonic cleaning with pure water, plasma decontamination, and vacuum drying to thoroughly remove residual metal particles and electrolyte impurities from the micro-pores and stencil surface, ensuring the overall cleanliness meets semiconductor packaging standards. Based on custom requirements, we perform electrolytic polishing, passivation for corrosion resistance, and stress-relief aging treatments to enhance the stencil’s surface finish, wear resistance, and oxidation resistance. This optimizes solder paste release performance, ensures consistent printing uniformity, and further improves the finished quality and service life of custom semiconductor packaging wafer printing stencils.

Comprehensive precision inspection and clean packaging serve as the final quality control check for electroformed semiconductor packaging wafer printing stencils before shipment. Using precision equipment such as laser thickness gauges, aperture testers, flatness gauges, and roughness testers, we conduct comprehensive inspections of the stencil’s overall thickness, micropore dimensions, aperture spacing accuracy, flatness, and pore wall smoothness. We strictly control tolerances at the micron level to ensure all parameters meet the requirements of high-end packaging processes. Products that pass inspection undergo anti-static vacuum packaging in a cleanroom environment, effectively isolating them from dust, moisture, and oxidation. This ensures dimensional stability during transportation and storage, allowing the semiconductor wafer printing stencils to be immediately deployed for mass production upon installation.

Semiconductor packaging wafer printing stencils are widely compatible with wafer-level packaging printing processes for logic chips, AI chips, memory chips, power chips, and automotive chips. With their high precision, high consistency, and high durability, they have become a critical process carrier in the advanced packaging industry. Tailored to various chip packaging scenarios, custom semiconductor packaging wafer printing stencils can flexibly adapt to diverse process requirements, addressing technical challenges such as ultra-fine pitch, high-density arrays, and ultra-thin printing. Continuous process iterations in the electroforming of these stencils are constantly pushing the boundaries of microstructure formation, facilitating the industrialization of high-end packaging technologies.

In high-end logic chip packaging applications, where pins are densely packed with minimal spacing, the requirements for solder paste printing uniformity are extremely stringent. Through the customization of semiconductor packaging wafer printing stencils, the micro-aperture aspect ratio and wall taper are optimized, effectively improving solder paste flowability at ultra-fine apertures and eliminating defects such as insufficient solder, solder bridging, and cold solder joints. Electroformed semiconductor packaging wafer printing stencils feature smooth, burr-free aperture walls and excellent printing consistency, significantly improving logic chip packaging yield rates and meeting the demands of high-volume mass production.

In high-density memory chip packaging applications, memory wafer arrays are large and densely packed, imposing stringent requirements on the stencil’s overall flatness and global precision. Through customized semiconductor packaging wafer printing stencils, the overall stress structure is optimized to ensure that large-size stencils remain flat and distortion-free, with uniform micro-hole dimensions across the entire surface. Electroformed semiconductor packaging wafer printing stencils effectively resolve the challenges of uneven large-area stencil forming and significant local deviations, ensuring the stability and consistency of mass-produced memory chip packaging.

In automotive power chip packaging applications, automotive-grade chips impose stringent requirements on packaging reliability, necessitating stencils that can withstand long-term, high-frequency printing without deformation or nozzle clogging. Custom-designed stencils for semiconductor packaging wafers feature enhanced structural strength and corrosion-resistant, fatigue-resistant properties, ensuring compliance with the high-reliability packaging standards for automotive chips. Electroformed semiconductor packaging wafer printing stencils offer exceptional product stability, ensuring long-term suitability for demanding mass production conditions and effectively safeguarding the service life and safety performance of automotive semiconductor products.

Overall, semiconductor packaging wafer printing stencils are indispensable precision components for advanced wafer packaging, playing a decisive role in chip packaging quality. Custom semiconductor packaging wafer printing stencils can adapt to the evolving needs of various new packaging processes, enabling flexible and personalized production. With the process advantages of stress-free, high-precision, and high-purity electroforming, these stencils continue to drive the upgrading of the semiconductor packaging industry, providing robust precision process support for the mass production of domestically manufactured high-end chips.
